Machine’s useage:
The design of the mahine is more suitable for the glass deep-processing manufacturers,.It can produce high-grade glass screens, hot-melt frame, engineering, art glass, glass fruit plate, widely used in modern high-grade glass decoration works; can be recycling process production and greatly increased productivity.
Its characteristics are: mold making simple, rapid transformation, with a small power consumption and high efficiency.

Principle and structure Description:

1. The device's working principle is: Put the glass on the mold ,heat them to a certain temperature, when the glass bend well, then evenly cooled, that is a finished melting glass product.

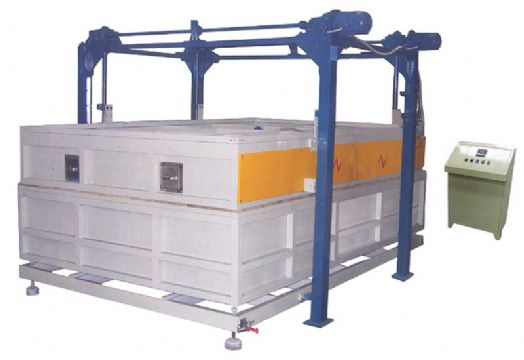

2.The machine is made up by heating systems, forming systems ,electric load and down systems two furnace bodies.The furnace body is made from steel.,Inside the furnace use high-grade cotton insulation .The temperature is contrilled intelligently with PID controller. The machine works manuly or auotmaticly., it’ high efficiency .
Specifications and technical parameter:

1. Processing of glass thickness 2mm-25mm.
2. Local Power:
A-: 38KW B-type: 52KW C-type: 65KW D-type: 80KW
3. Equipment Size:
A type: outside size :L2650 * W 2200 * H 1500mm inside size L2200*W1900* H200mm
B: furnace outside size L3500 * W 2200 * H 1500mm long furnace 1900 * 3100 * W 200mm high
C type: outside size L3900 * W 2200 * H 1500mm inside size L3600 *W1900 *H 200mm high
D type: outside size L 5100 * W 2200 * H 1500mm inside sizeL 4500*W1900 * H200mm high
4. Steps: heating molding time of 1.5-2 hours and 4-8 hours cooling time.
5. Each device can be equipped with a Vice-furnace to produc cyclely and improve production efficiency.
6. Can be customized according to needs.
