Brand: SAKING
Model: S812
Price: CNY 1000 / set
Min. Order: 10 set

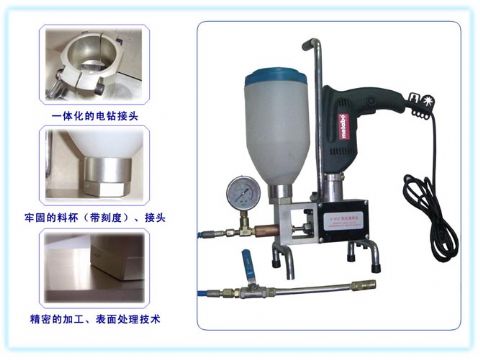

S-812 drill operated Injection Pump is the professional machine which is applied in the structure perfusion, equipped with super pressure. To solve out the inconvenience of the carrier, it is very light and it is the best choice of stanch worker.
Speedy Construction : can be advanced to 5000PSI in a few seconds, and the working time will be shorter than other machine.
Low gross: It is only 9KG, easy to carry.
Simple maintenance:can be fixed without special training, to avoid the delay for the machine fixing.
Standing Pressure: can be affused into the small slot effetively, and envelop the leaking.
Technical data
property
N.W. 9 kg
Pressure Max Output Pressure 11000 PSI
Star-up 7500 PS
Safety Scope of High-pressure pipe 14000 PSI
Safety Scope of On-off Valve 18000 PSI
Safety Scope of Butter Head 16000 PSI
Flow 0.74 Liters/minute
Volt 220V


Standard Specification* Machine Body
* 5 meters high pressure pipe
* Switch Valve Suit(including Butter Head)
* Metado sbe560 Electric Drill
* Maintainance Saddlebag
Application Scope
1. for the crack, flexing crack, construction crack, and instruction crack of building and concrete project.
2. Leak stopping for the breast wall of artesian well in geologic drilling project.
3.Grouting of reservoir and dam for the water conservancy project, leak stopping of the water transporting tunnel, seepage control of the concrete crack of the embankment.
4. leak stopping for underground, tunnel, culvert, sewage disposing pool, concrete fissure.
5. leak stopping for basement, underground garage, and underground channels.
6. Leak stopping for floor, wall pipe, and wall corner.
7.Cracking of building, girder, pole, board etc structure, inject epoxy resin with high-handed.
