Model: CBFC8120

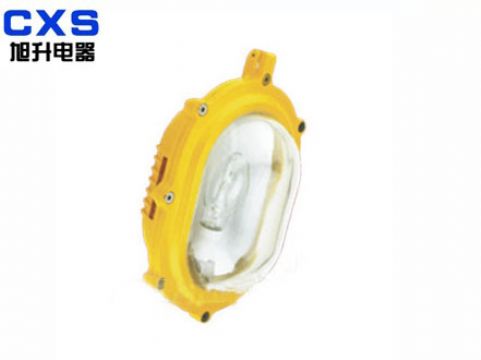

CBFC8120-150 CBFC8120-35 inside explosionproof strong floodlight
Description
According to actual demands of various production enterprises, public locaons and tunnels of roads and railways, researched and developed by our company, the CBFC8120-150 CBFC8120-35 is widely applicable for the road and passage floodlight in such areas as factory areas, stations and various large facilities, locations and tunnels, roads and tunnels, roads and bridges etc.
Functions
Ex function by explosion-proof certification authority of the state institutions, in compliance with national standards exproduction, in inflammable dangerous work places safe and reliable.
Special emergency functions of circuit design, lighting can work, but also as a power outage, emergency lighting,dual function.
MH efficienct use high-efficiency ,energy-saving efficiency of gas discharge lamp for light, the average service life of 10,000 hours. Surface application of environmental use the most advanced spaying technology not rust,no discoloration water and rain proof but also in long-term outdoor use. Lights
Main technical parameters
A
1. Rated voltage:220V
2. Light source:(cmhair light):
Rated Power:
CBFC8120-150W No11500
CBFC8120-35W No 2600
Verage service life: 1000h
1. outer size:
lamp:350*250*135mm
ballast:365*244*101mm
2. weight:
lamp:3.5kg
ballast:5kg
B
3. Rated voltage:AC160-260V
4. Power:50HE
5. Emergency voltage:DC12-16
6. Light source:(MH air light):
Rated Power:35/70W
Lumionous flux:3600/5200lm
Verage service life:1000h
7. Emergenly working time:90/50min
8. outer size:
lamp:350*250*135mm
ballast:210*160*145mm
9. weight:
lamp:3.5kg
ballast:5kg
Guarantee of quality
This product is audited againse ISO9001:2000 international quality system and it is guaranteed for three years from the purchasing date. This company will be liable for any ault of this product under normal operation within three years, and will carry-out material and maintenance free of charge
