Model: CBFG6600

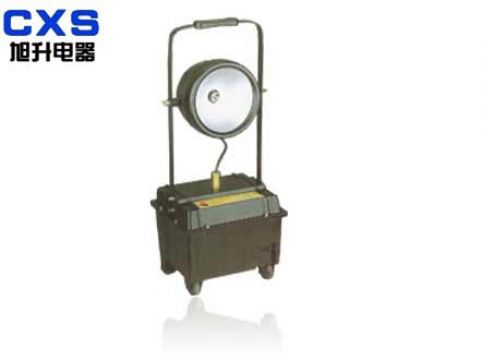

CBFG6600 explosion-proof floodlight
Description
To meet the requirement of railroad, electric power, pokice, oil field,mine and so on varlus working or accident amend. Our company has developed CBFG6600 big power explosion-proof working light(Xenon lamp), which has certificated by CHINAAUTHORITY and could safty use in various explosion area and underwater sites.
Functions:
1. Safety&explosionproof:with topmost explosion-proof level in flameproof type; it can be used in any portentially explosive atomspheres safely.
2. High efficiency&energy-saving: by adopting special saving bulb with high color temperature, the luminious is 3200lm,5 times than the same power if halogen bulbs. The lightness is 5 times than 100w halogen bulbs. The bulb life could be 10000h,5-10 times than common halogen bulbs, the continuously work time is no less than 11 hours. The goods under same indication, the using power is 15% of the common halogen bulbs, with small hot power and more security.
3. Reliability:the high-energy battery has no memory and high specific capacity,after one charging, it could have 90%capacity in one year and 65% in two years and with low voltage lighting protection to sure the battery the battery will not over release.
4. Stable quality, have full seal design, the shell of searchlight made of special alloy with high hardness can resist strong impact
5. Flexinility: lighting andle can be changed 120 andle up and down, with convenience working wheel and handle line, simple to operate.
Main technical parameters
Type A
1. Rated voltage: 24V
2. Rated capacity:20Ah
3. Special bulbs:
Working voltage:24V
Rated power: 35W
Luminus flux:3200lm
Average using time: 10000h
4. Continous release time: >11h
5. Charging time:
Battary using: ≥16h
6. Battery using time:
About 1000cycles
7.size:
Leng:270mm
Wide:228mm
High:600mm
8.weight:15kg
Type B
1. Rated voltage: 24V
2. Rated capacity:20Ah
3. Special bulbs:
Working voltage:24V
Current strong light:4A
Current working light:1.5A
Luminouis strong light: 2800lm
Luminouis working light: 850lm
Average using time:≥1200h
4. Release time:
Strong light:5h
Working light: ≥10h
5. Charging time:
Using normal:12h
Battery using: ≥16h
6. Battery using time:
About 1000cycles
7.size:
Leng:270mm
Wide:228mm
High:600mm
Added fixture hight:3000mm
8.weight:15kg
Guarantee of quality
This product is audited againse ISO9001:2000 international quality system and it is guaranteed for three years from the purchasing date. This company will be liable for any ault of this product under normal operation within three years, and will carry-out material and maintenance free of charge
Degree of protection of enclosure:IP66
