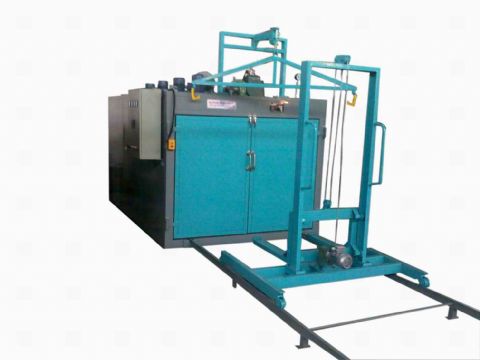

Model: FY-ZK-5
The equipment is suitable for the glass deep processing factory. The machine use EVA film(also called EN film),It can produce ordinary laminated glass,also other laminared glass made from PC sheet,PET flake,deorative paper, silk or cloth,color film or metallic wire net.
Its characteristics are: No need to use autoclave, simple operation, low energy consumption and high efficiency.
Principle and Structture Description:
1.Working principle : Heating and pump air from vacuum bag, making the glass and EVA film (also called EN film) heat together, to form a safety laminated glass.
2.The machine is made up by this six parts:Funrnace body,electric control systerms,vacuum pump,heat circulation,cooling systems and loading/unloading systems..furnace boby is made by stainless steel,using two kinds of high quality heat insulating materals.Intlelligentizd temmpearture controlling system,.The whole process can be completed automatically or manually..The vauum pump of hight-quality.The heating devie is advanced , and the upper and lower surface were heated evenly on each floor vacuum bag,.The loading and unloading part works electricly, easy to be operated,and reduce intensity.

Parameter

1. Outerside dimensions:3600*2200*2000m.
2. Max glass size: 3200 * 1800mm
3. Control box: 500 * 300 * 250mm
4. Total installed power: 43KW, heating 36KW.
5. Power: 380V/50z.
6. Using programmable smart stability control device that can control the rate of temperature rise curve.
7. Design temperature: Maximum 200 ℃.
8. 5-layer vacuum bag,suitbal for mass production., easy to operate.
9. Production speed :1-1.5h / furnace.
10. Can be customized according to needs.
