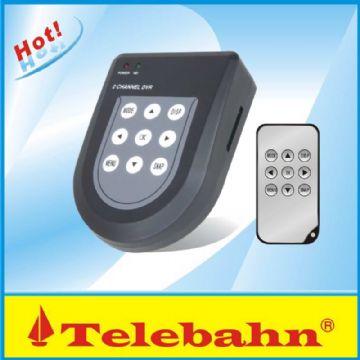

Brand: telebahn
Model: DVR-2VR
Min. Order: samples av
Main Features:

◎ DIY installation and operation

◎ With remote control (5m effective working distance in open space)

◎ Connects two cameras simultaneously, functioning “picture in picture”

◎ With built-in SD card slot, supporting up to 8GB memory capacity

◎ Automatic Snapshot (JPEG) / 10-second video recording (AVI) when motion detected

◎ Support playback on TV / Monitor / Computer



Main Specifications:


MODEL
DVR-2VR

SD Card Back-up

(Archive Device)
Up to 8GB

Video Input Format
NTSC/PAL

Video Output (CVBS)
1 channel

Video Input (CVBS)
2 channels

Display Mode
Full / PIP

Display Frame Rate
NTSC: 30fps; PAL: 25fps

Display Resolution
NTSC: 720*480; PAL: 720*576

Recording Mode
Motion-triggered / manual

Recording Frame Rate
NTSC: 15fps; PAL: 12fps

Recording Resolution
AVI: video: 160*120; Photo: 640*480

OSD
English

Search Function
Mode: Date & Time; F/Screen: Yes

Motion Detection
Yes (Internal)

Net Weight
108g

Dimension
115mm*80mm*31mm

Power Supply
DC 5V/12V 1A

Lithium Cell Battery (CR2025)

for Remote Control
3V
