Model: DVR606
--------------------------------------------------------------------------------

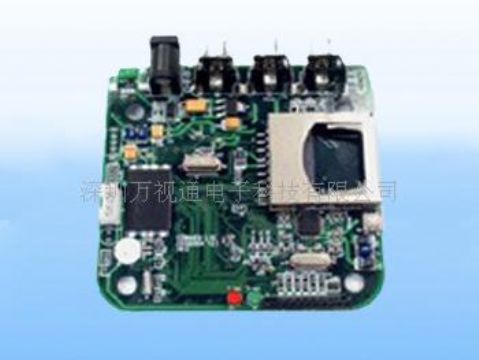

Name：Mini Motion Detect DVR-Module
Model：DVR606 Technical Index:


--------------------------------------------------------------------------------

Brief Introduction

The basic function of the DVR can be summarized as: DVS=CCTV+DVR, that is to say, when moving object appears, the camera can shoot and record automatically/ manually and keep the record in internal memory or SD card; besides, the user can watch the records on TV (monitor) or computer (install SD card reader) at any moment and also can transfer the records to computer. DVR can be widely used in house, office, supermarket, etc



--------------------------------------------------------------------------------

FUNCTION
1. Get into the state of "detecting moving objects" once power on



2. Automatically take photos/record once detecting moving objects



3. Stop taking photos when the moving objects stop moving
4. The internal memory can store about 230 photos or 50 video clips
5. DVR606(DVR606+128MB SD card) can store about 1000 photos/200 video clips
6. Support maximally 2G SD card which can greatly enlarge the storage of images
7. Video recording conforms to the principle of "First in, First out",overwrite, record forever
8. Can connect two cameras simultaneously, with the function of "Picture in Picture" but only the main picture can shoot
9. Support all kinds of CCTV cameras (CCD, CMOS)
10. With ports of "outside triggers shooting"and "motion detect signal trigger output"
11. The images stored in internal memory or SD card won't lose when power off
12. Support video signal of NTSC/PAL
13. The detecting scope, sensitivity and the interval can be reset
14. The shooting date is stored as file name
15. Can look for , and check images/video according to the shooting date



16. Has the simple menu for operation, no need to install any software



--------------------------------------------------------------------------------

PARAMETERS



Supply Voltage: DC12V



Work Current: 400mA



Work Temp: -10oC~ +50oC



Video Input Impedance: 75Ω Typ
Video Input Level: 1Vp—p Typ
Video Polarity: Cathode
Video Output Impedance: 75ΩTyp
Video Output Level＿Vp—p Typ
Video Polarity: Cathode
nternal Storage: 16M~128MB
File Format: Photo with JPEG
Video with AVI
Photo Pixel: 640x480
Video pixel: 320x240
Record Time: Every recording time 10S
SD Memory Card: (optional accessory)
Internal Memory: 2G
Numbers of photo: about 28,800pcs



Record Segment: about 4,380
