Specification:

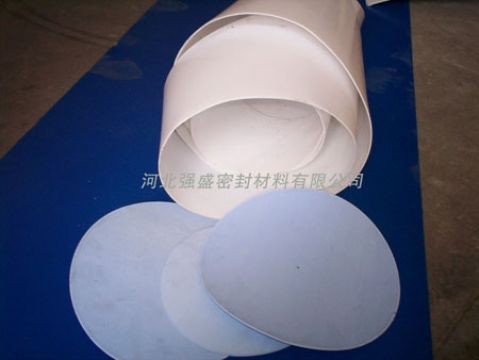

Description:QS PTFE product includes sheet, Tube (TU4060), Rod (RO4060), Film (FI4060) and gaskets etc., they are molded, skived or cut from 100% virgin PTFE. It has the best chemical corrosion resistance among known plastics. Without being aging, lowest friction coefficient, wear resistance. The unloaded operating temperature range is -180~+260C.
CONSTRUCTION:
QS 4060F Filled PTFE Sheet

The filled PTFE products are molded PTFE resin mixed with the most frequently used filler materials such as glass fiber, carbon fiber and graphite etc. The filled PTFE has improved compression strength, better abrasion resistance, high thermal conductivity and lower thermal expansion compared with pure PTFE products.

PROPERTIES & APPLICATION:
Style Products TensileStrength PressureMpa Densityg/cm3 Temperature℃
4060 PTFE Sheet 15Mpa 10 2.1~2.3 -100~250
4060F FilledPTFE Sheet 10Mpa 16 2.1~2.3 -100~260
EX4060 EPTFE sheet Gore,Klinger,Garlock,Sealon etc.According to manufacture
