Brand: yuan
Model: YAT6805
Min. Order: 1对
Summary:

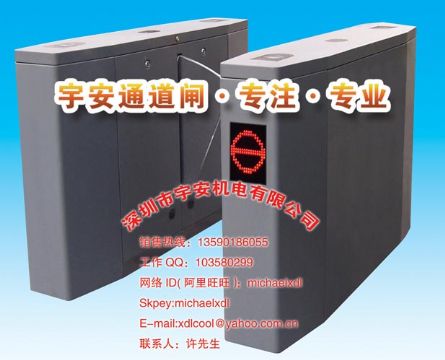

Bridge-type luxury wing barrier is a high-tech product aimed at the pedestrian access intelligent management, which is a upgraded product based on intelligent tri-turnstile, swing barrier, average wing barrier. This product is well-processed and newly-designed with full functions, high grade, and mainly used in high grade places such as top-grade community, intelligent mansion, hotel, subway, port, club etc. The product integrating with mechanism, electron, microprocessor and various identification technology is compatible with card reader devices such as IC card, ID card, bar code, fingerprint and so on. By configuring all kinds of identification devices and adopting reliable safeguard devices, alarm devices, direction indicator etc, it is able to achieve acess intelligentized control and management.It is classified into two categories: single-chip and double chips, the former is used for single channel or several channels, and the latter one is used for several channels.
Standard product functional features:
Function and characteristics:
With function of self-examine and alarm, it is convenient for maintain and use.
being able to program operation status by the small keyboard in the main board
Preventing pedestrians from being nipped and from hurt
Light and sound alarm funtion including the illegal in and follower
Arms are automatically locked untill opening signal is received.
Arms synchronization (adjustable)
Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable
Automatically open the gate when power off and automatically close when power on
Several card readers are attachable, and relay singals can be received.
One direction or bi-direction are optional
It can be directly controlled and managed by remote control.
Extendable function:
Count
Length of framework and material of arm are optional.
3. Main structure and configuration
2 standard caseworks
2 stretchable arms (colours are optional)
2 main control boards
2 transformaers
2 electricmotors
2 sets of core and transmission parts
4 infrared devices
2 alarm annuncitors
2 direction indicators
2 channel indicators (standard) (option)
Standard technology parameters
Framework material: State standard 304 grade stainless steel
Framework size: 1400*300*1000(mm)
The widest breadth of the passage: 600mm
Weight: 140Kg
Driving eletricmotor: DC eletricmotor 24v
Input interface: touching signal or +12V electricity signal or impulse signal of more than 100ms DC12V Driving current: > 10mA
Normal life-span: 3million times
Communication interface: Rs485 standard Distance less than 1200metres
LED indicator: 1 card reader window: 2
Transit speed: 30-40 persons/min
Time for opening or closeing: 1 seconds
Starting time after power is on: 3 secconds
Automatic reset time after fault: 10seconds
Working environment: indoor, outdoor( with a tent over)
Temperature: -10℃—— 50℃ Relative humidity: ≤90%
