Martin Standard Triplex B Type

Martin Standard Triplex B Type

Martin Standard Triplex B Type

Detailed Selling Lead Description
Brand: D&H
Min. Order: No Limit

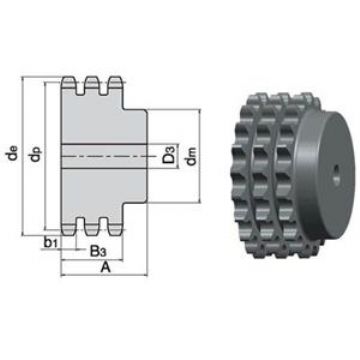

MARTIN Standard Triplex B Type
MARTIN Standard Triplex B Type sprockets are matched with ANSI Standard triplex chains, This is generally used to transmit rotary motion between two shafts and to provide linear motion to a track, tape etc. It has one-side hub, stock bore, usually users must make the finished bore, such as keyway, set screw etc, to situ shafts, and work in pairs. Triplex plate wheels can load big strength. They are widely used in North, South America, Latin America. All the products are according to din regulations, such as DIN 8187; DIN 8188; ISO/R 606 and ANSI B 29.1.
Specification
1. Material: 1045, Q235, 40Cr
2. Surface Treatment: Zinc Plating, Nickel-Plate, Powder Painting , Oxide Blacked.
3. Heat treatment: High- Frequency Quenching
4. Hardness: HRC 42-48
5.Type: 15B-3,25B-3,35B-3,40B-3, 50B-3,60B-3,80B-3,100B-3,120B-3,140B-3,160B-3,180B-3,200B-3,240B-3
6. Lubrication: Light anti- rust oil
7. Package: Plastic bag for each piece, Plywood case
8. Warranty Years: 12 months
Application
This type of sprockets is usually used in food industry, textile field, agricultural field, forestry industry, milling industry, oil field etc.
