Detailed Selling Lead Description
Brand: Guo Wei
Model: 130B
Price: CNY 1200 / Taiwan
Min. Order: 1 Taiwan
Wei Machinery Equipment Co., Ltd. Guangzhou China Chinese medicine production Slicer Features: Traditional Chinese medicine slicer, good stability, high precision, easy to operate, continuous uniform slices. Chinese slicer, good stability, high precision, easy to operate, continuous uniform slices.
Chinese slicer details:
Type the number of motor revolutions power slice thickness of slices Voltage Dimensions Weight
300B 0.35 720 pieces / min at 1,400 rpm 0.3-3MM 12KG 220V 300/180/240 mm
130B 0.3 720 slices / min at 1,400 rpm 0.3-3 13KG 220V 300/180/240 mm
600B 0.38 720 pieces / min at 1,400 rpm 0.3-3 14KG 220 200/300/340 mm
Chinese slicer details:
I. Use

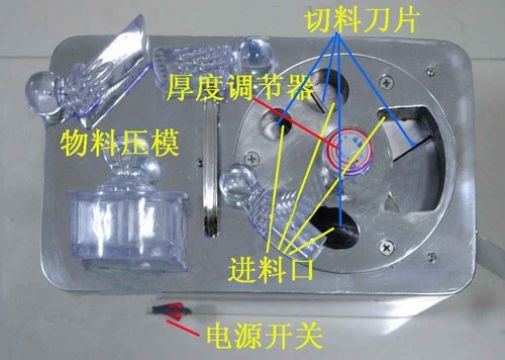

This machine adopts single-phase motor package, using high-grade bearings, and install the four blades on the cutter, slice the effectiveness of slow and high speed ratio, slice thickness can be adjusted, widely used in pharmacy, pharmacy, medicine processing and so on. The machine is compact, high efficiency, easy operation, sophisticated appearance, the energy saving and security features.
2, use
1, regulation: when the first release solid tight regulation Cylinder and nuts, followed by rotating nut and adjust the direction of Servant's thickness, thickness adjusted properly, you must tighten the nut and the copper pillar. If the knife blade parallel to the plate and not to boot. Cutter blade must be less than before boot truncated. Adjusting the thickness of 3mm, thin no level modulation.
2, the replacement blades: machine into the side of the handle with hexagonal holes. Set the direction of rotation can be adjusted further ATC, ATC blade when the two loose hexagonal screws, insert the blade and replace.
Third, pay attention
1, knife basin Oil it often to prevent sticking scale, such as tablets to stay there the end of films with small and fragmented, indicating softening defective or not sharp blade must be replaced or sharpened. Stressed too thin, not good truncated.
2, slice, such as sweet cloud, raw land, per reference, and other viscous substances Tianma the surface with water or cut.
4: The product warranty for one year maintenance for life. 13710069187 Web www.huaxiang138.com non-human factors, machine parts due to product quality need to be replaced, the company replaced free of charge except outside, and bear parts packaging, transportation costs. (Safety reputation to protect: only a small amount of advance deposit, you can express delivery logistics and cargo to and then pay the balance
