Brand: GUO WEI
Model: 5YT150
Price: CNY 0 / Taiwan
Min. Order: 1 Taiwan

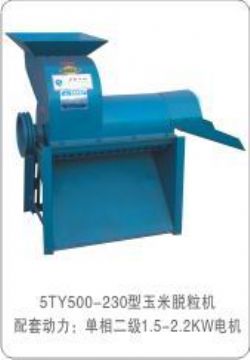

Guangzhou Guo Wei Machinery Equipment Co., Ltd. Production: 5TY series corn thresher, the main working parts for installation on the machine rotor, through the rotor rotation and tell the impact the threshing drum, is the more widely used economic model threshing equipment, with a small volume , light weight, installation, operation, maintenance is simple, a lot of advantages of high production efficiency.
5TY series corn thresher, mainly by the sieve lid (ie, drum), the rotor assembly, feeding devices, rack, etc. 5 parts, screen and cover together form a threshing rotor assembly room, the rotor assembly is a the main working parts, corn on the threshing threshing room to complete.
How it works:
5TY series corn thresher, working hours, and corn from the feed port of entry, and corn in high-speed rotation of the rotor and the drum have been hit inside the seeds are separated by a sieve, corn cob from the rear of the machine to drain Sphacelotheca the skin from the exhaust outlet .
Inlet is located in the upper part of the machine cover, corn on the cob through the feed port into the threshing room, in the threshing indoor high-speed rotation of the rotor impact corn kernels off, through the sieve to separate, feeding the lower front of the entrance there is a baffle to prevent the shedding splash wounding of maize grain.
The kinds of machinery, threshing efficiency by the cylinder length and diameter determined, the user can according to their own threshing efficiency, reasonable selection of this series corn thresher. Nail on the rotor teeth are wearing parts, should always check the wear and tear, when the screw a quarter of tooth wear can be used to repair or replace nails welding gear, such as nail repair replacement tooth, we must all repaired or replaced in order to ensure the balance of the rotor; screen are wearing parts, such as the screen damaged, please replace a new screen.

Type Single Weight (kg) Spindle speed r / min fan speed r / min equipped with power (kw) equipped with the Triangle (mm) productivity kg / h off the net rate of fragmentation rate
5YT150 type 2713002200 Single Phase 2 1.5 Host: A1000
Fan: A950 1000 ≥ 98% ≤ 2%

Exfactory sales direct sales, welcome to order! 13710669187 www.huaxiang138.com
