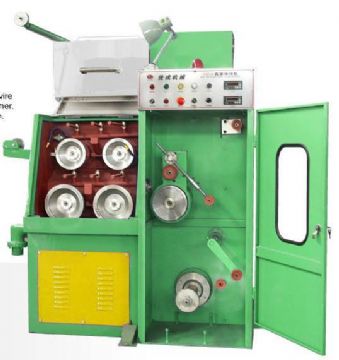

Brand: jiacheng
Model: JCJX-20D
Min. Order: 1 unit
Machine type JCJX-20D
Control system Traditional analog type
Inverter control Dual Inverter control
Drawing dies No./Max. 20
Inlet diameter φ0.12～φ0.45mm
Outlet diameter φ0.05～φ0.12mm
Drawing line speed 1800m/min
Slip ratio of m/c 10.5%
Fix speed capstan slip ratio 6%
Frame Ironed cast
Capstan Ceramic plasma capstan
Main motor 4KW
Spooler motor 2.2KW
Capstan dia.(Max.) φ120mm
Fix speed capstan dia. φ120mm
Spool bobbin size φ250or according to customers requirements
Send-out method Shaft type
Traversing unit synchronous motor +Belt
Transmission type By flat belts
Spooler control PID synchronous spooler
Detecting device Weight balance by swing arm
Tension control Weight balance type
Max. loading capacity 30KG
Lubrication type Spray type
Brake Magnetic brake
Power source 380V 50/60HZ
Lubricant oil capacity 25Liter / minute
Machine dimension (mm) 1900×1500×1750
Machine weight 2000KG
