Detailed Selling Lead Description

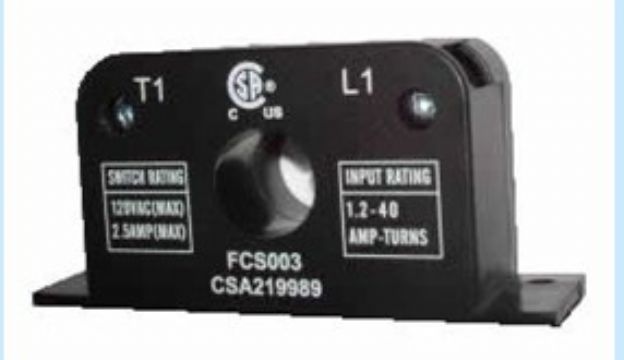

Brand: Furison
Model: FSC003-SD-NO-F
Min. Order: 1
The Series are intended to monitor the operating status of fans, pumps, and motors. These self-powered switches can be hung or tied directly to cables or wires. For use on existing installation, split core models can be installed without disconnecting cables. LED indicators provide a visual confirmation that the current is passing through the core. Both fixed and adjustable set points are available. The adjustable models easily adjust the set point with a potentiometer.

Specifications:
Amperage Range: 0~200A AC
Maximum Switch Rating:
For fixed set point models: 0.3A@135V AC/DC
For adjustable set point models: 1A@240V AC
Output: Normally open.
Power Requirements: None, Self-powered.
Operating Temperature: -30~70 centigrade degrees
Operating Humidity: 0~95%(non-condensing).
Frequency: 40~400Hz
Enclosure Rating: UL, 94 V-O flammability rated, ABS plastic housing.
Approvals: UL & cUL CE & RoHS.
